Double door vault

Our Vault Doors are manufactured following the ISO 9001:2015 quality management system certified by TUV Germany and comply with European standards.

Vault Door

Unparalleled Security and Durability

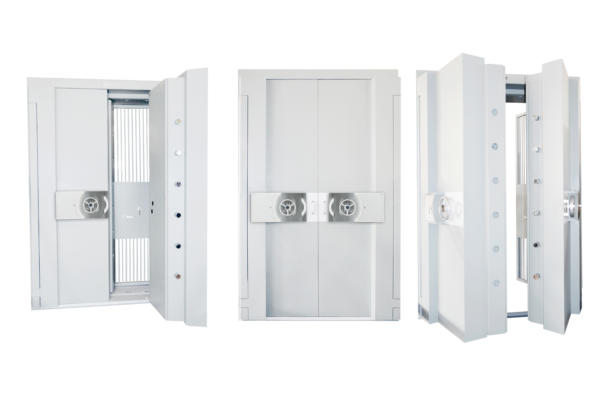

Introducing the Vault Door, meticulously engineered with dual doors to provide maximum security for your valuables. Designed with advanced construction techniques and robust materials, the Vault Door ensures unparalleled protection and durability.

Advanced Construction

– Dual-Door Design: The main door features seven distinct barrier curves and includes a secondary grill gate door to enhance overall security.

Reinforced Structure

– Solid Concrete Filling: Designed to incorporate solid concrete filling, reinforced with various barrier materials and angles to maximize security and durability.

Robust Layering

– Boxed-Shaped Outer Wings:The main door is constructed with steel plates, reinforced concrete, twisted steel bars, different shaped steel, and anti-drill manganese steel. This robust layering resists drilling, cutting, carving, and welding.

Dual Lock System

– Combination Locks: Equipped with two combination locks, including our standard USA lock, certified by UL and VDS standards. The door thickness ranges from 90mm to 102mm and can be customized to meet specific customer preferences. Optional designs are available to conceal hinges for an enhanced aesthetic appeal.

Secondary Grill Gate

– Triple-Layer Security: Features two key locks (Germany) certified by VDS and UL standards, operable from both sides. The grill gate is divided into three parts: the top section with 20mm diameter steel bars, the middle section with a 50mm steel plate and reinforced concrete, and the bottom section with 20mm diameter steel bars.

Customizable Solutions

– Our specialized team is dedicated to custom designing vault doors to meet your specific quality and security requirements. We ensure that each vault door not only meets but exceeds expectations.

Choose the Vault Door for tailored security solutions that offer maximum protection and durability. Contact us today to learn how we can secure your valuables with the highest level of craftsmanship and safety.

Model OUTSIDE DIMENSIONS (mm) INSIDE DIMENSIONS (mm) WEIGHT (Kg) VOLUME (litre) SHELF Dia of bolt (mm)
H W D H W D
Vault Door-1800×800 2018 1075 300 1838 750 300 670 0 Þ40
Vault Door-1900×800 2068 1125 300 1888 800 300 750 0 Þ40
Vault Door-2000×1000 2168 1225 350 1935 870 350 1000 0 Þ50
Vault Door-2200×1200 2368 1425 350 2135 1080 350 1150 0 Þ50
Vault Door-2200×1400 2368 1625 350 2135 1280 350 1300 0 Þ50
Vault Door-2500×1600 2668 1825 350 2500 350 1800 0 Þ50
